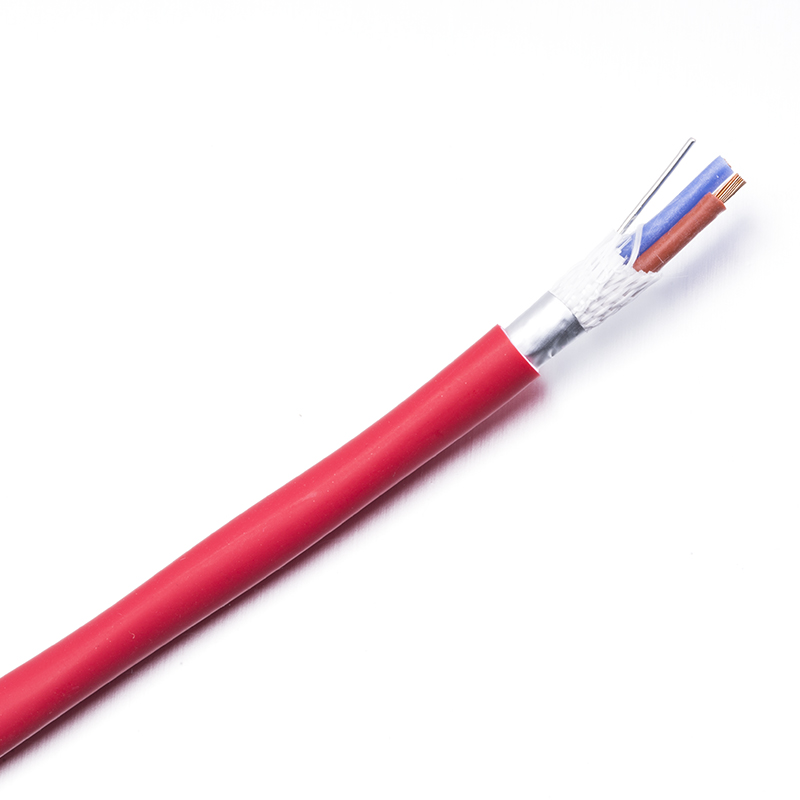

PH120 Red 2 Core Stranded Fire Alarm Cable

PH120 Red 2 Core Stranded Fire Alarm Cable

  • Product Part No.： JBFA07

    Product Standard： BS6387/EN50200 PH120

    Reel Length： 100m/500m drum

    Conductor Cores： 2 cores

    Conductor Material： stranded bare copper

    Insulation Color： brown+ blue

    Insulation Material： silicone rubber

    Wrap： fiberglass tape

    Shielding： aluminium foil

    Drain Wire： tinned copper

    Jacket Color： red

    Jacket Material： LSZH

    Lead Time： 20-30 days

  • INQUIRY

KEY APPLICATIONS

Fire detection and fire alarm systems for buildings.

Voice alarm systems and emergency voice communication.

Emergency and escape lighting.

Control circuits for fire safety and fire fighting systems.


TECHNICAL DESCRIPTION

Operating Voltage :    300/500V

Conductor Material:    Stranded Bare Copper

Insulation Material:      Silicone Rubber

Jacket Material:             LSZH


STANDARDS

BS EN 50200- PH120

BS 6387 Category CWZ

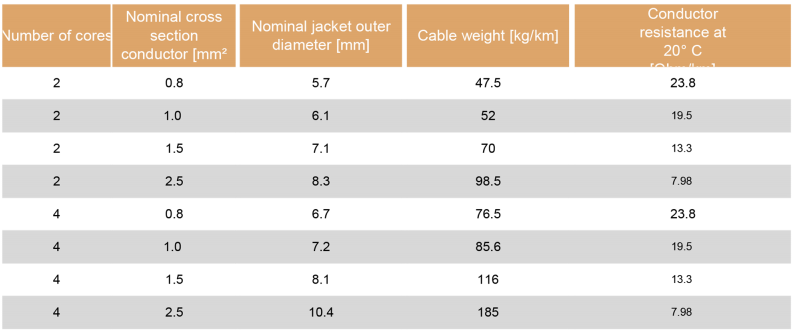

TECHNICAL DATA
