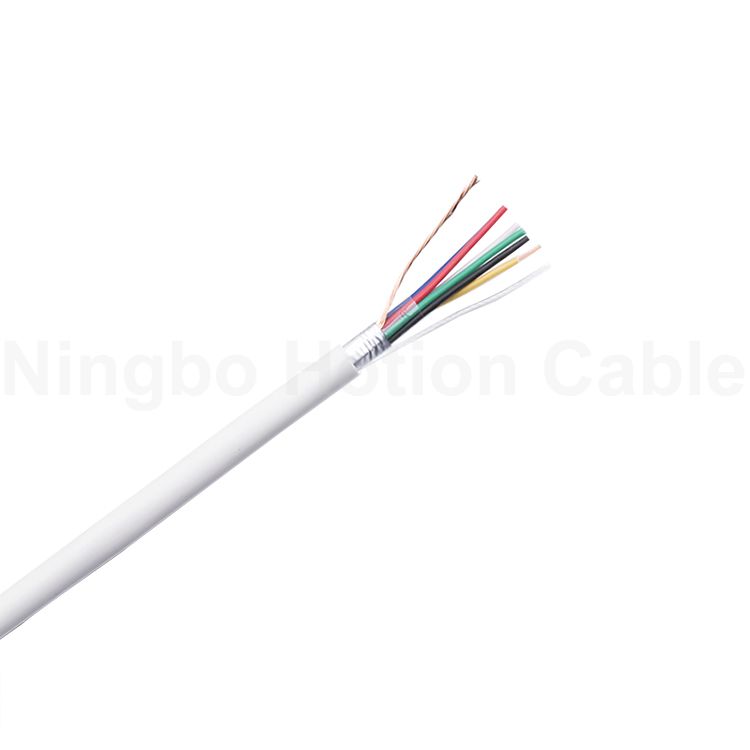

White 6 Core Stranded Shielded Security Alarm Cable

White 6 Core Stranded Shielded Security Alarm Cable

  • Part No.： JBAL01

    Structure： 24AWG/22AWG shielded

    Conductor Material： CCA, TC, BC, TCCA

    Specification： 7*0.18/0.19/0.20mm

    Cable Core： 2 cores

    Insulation Material： PVC

    Rip Cord： nylon fiber

    Shileded： Al/foil

    Drain Wire： 7*0.2mm

    Jacket Material： PVC

  • INQUIRY

KEY APPLICATIONS

These cables are used for installation in signaling and alarm system or security system.

Infrared as well as microwave or mixed technology systems to the switch board.

This is suitable for the connection of contacts detectors and sensors.


ELECTRICAL CHARACTERISTICS

Nominal DC resistance per conductor at 206.43 ohms/Kft.

Nominal capacitance between conductors at 1kHz 35 pF/ft

Operating voltage: 300v/RMS max

Temperature rating: -20℃ to 60℃



TECHNICAL DATA
