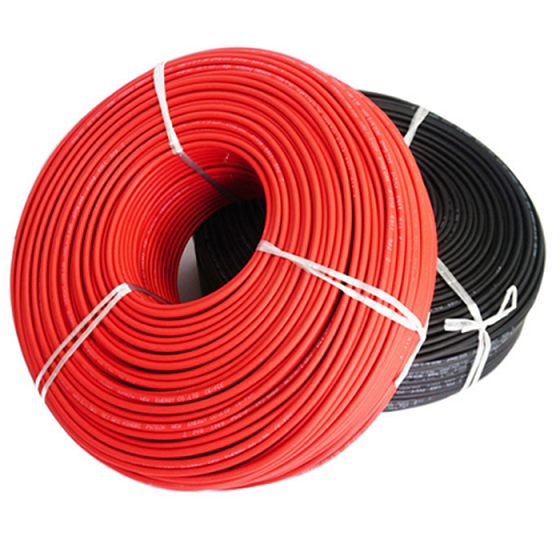

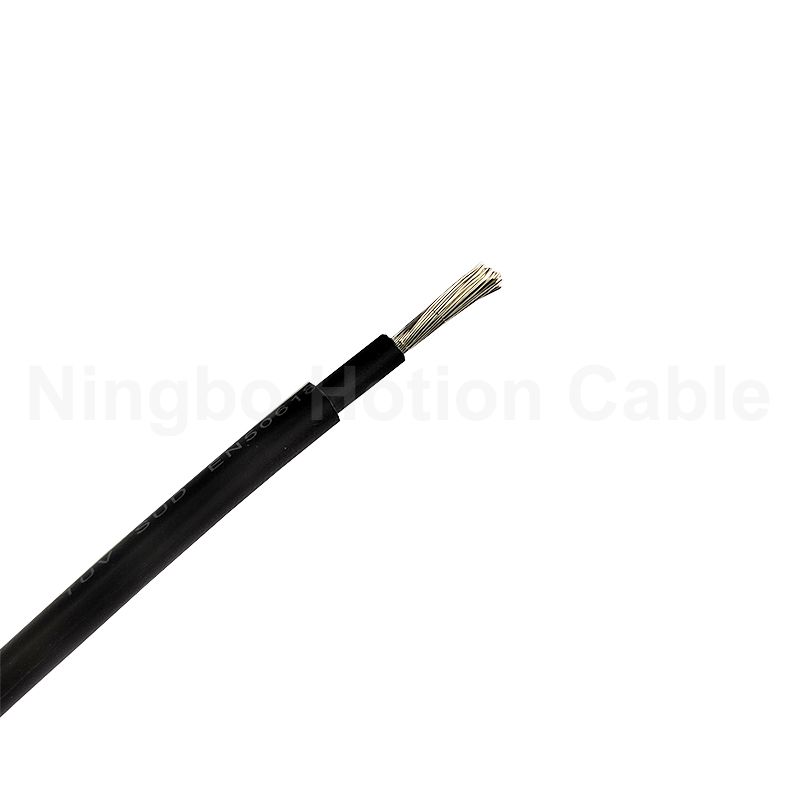

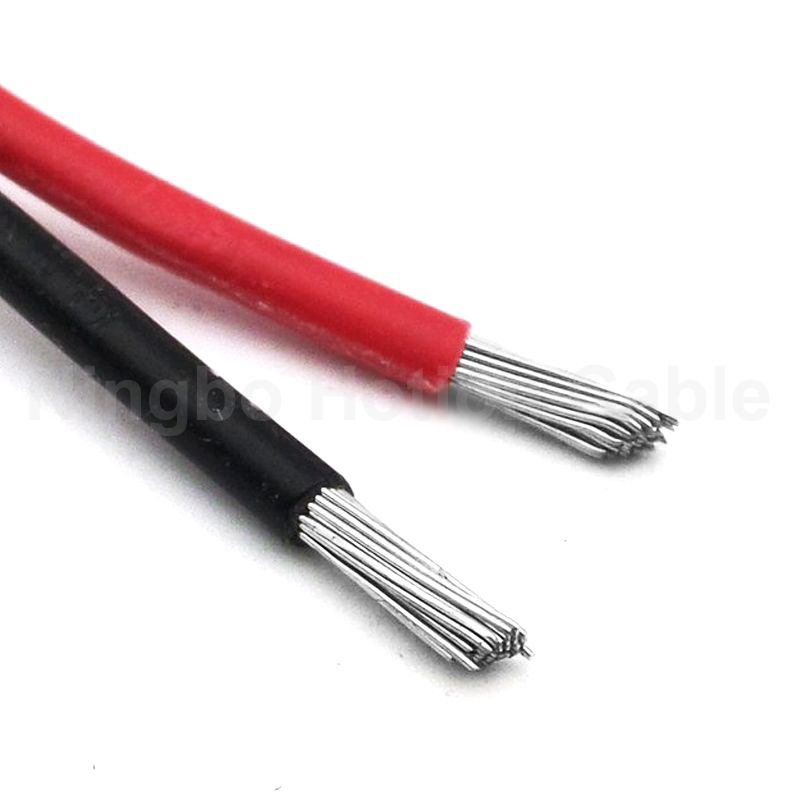

Black Single Core 4mm 6mm 10mm Solar Cable

Black Single Core 4mm 6mm 10mm Solar Cable

  • Ambient Temperature -40℃~+90℃

    Test Voltage 6500V, 50Hz, 5min

    Number of Cores Single core

    Rated voltage Max DC 1.8kV

    Max Temperature at conductor +120℃

    Conductor Tinned Copper

    Insulation Material XLPO

    Jacket Material XLPO

  • INQUIRY

KEY APPLICATIONS

Single SOLAR CABLE, Double Insulated,Halogen free,Flame retardant

Internal wiring for solar panel and photovoltaic applications

STANDARDS

Flame test                                IEC60332-1

Weathering /UV-resistance     HD605/A1

ACID and Alkali resistance       EN60811-2-1


TECHNICAL DATA
